PRODUCT ADVANGE

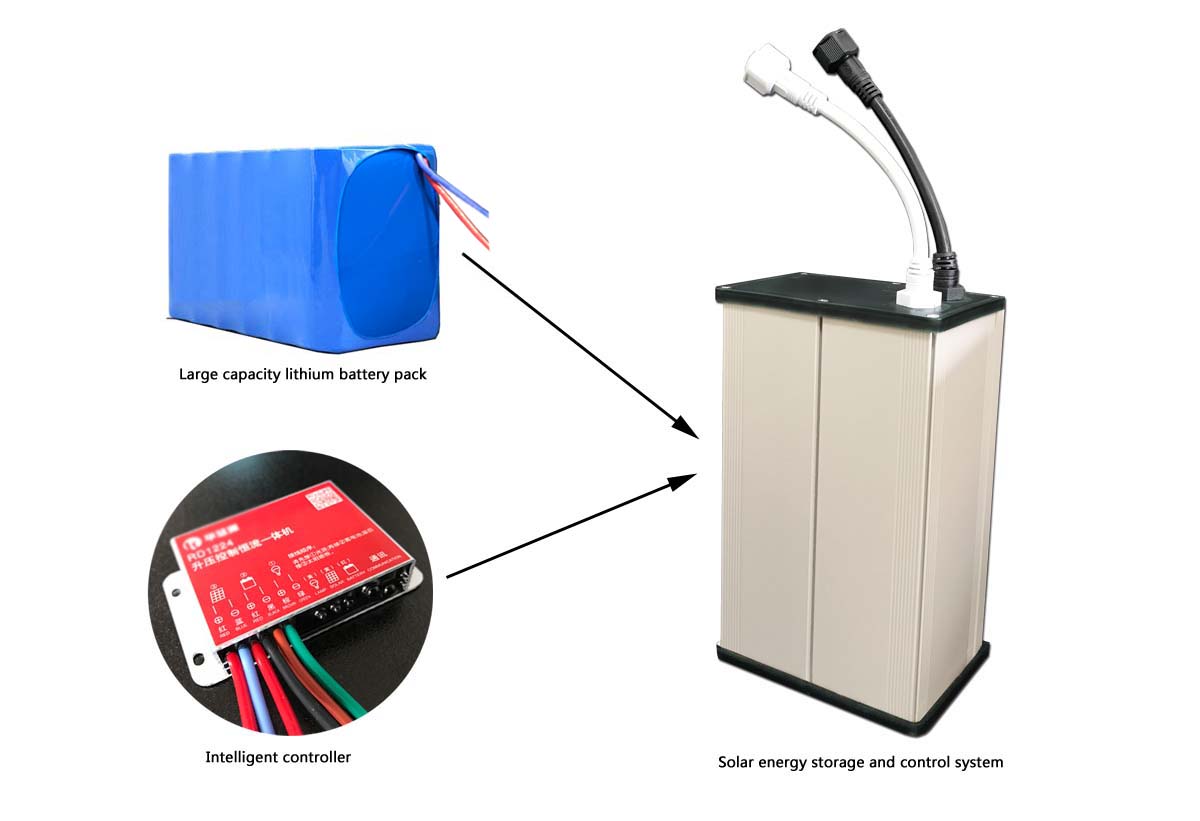

Solar energy storage and control system

Large capacity lithium battery pack：

          batteries：Select high-quality lithium battery, safety valve explosion-proof, electrolyte uniform, high energy density, multi-layer safe high-temperature resistance diaphragm, small internal resistance, large capacity, long cycle life.

          Lithium battery intelligent protection plate：Adopt A class A protection IC scheme, with over charge, over discharge, over voltage, over current, short circuit, anti - reaction, temperature, balance and other protection functions.

Intelligent controller：With short circuit, over current, low voltage, over voltage, lightning protection function;Multi-time and multi-power load control mode, efficient charging, prolong battery life;2.4g wireless remote control setting, easy to operate.

Shell：Hard aluminum alloy material, flame retardant, anti - slip, anti - wear, anti - rust, anti - oxidation, multi - waterproof design, adapt to harsh environment.

Cable：Choose 2.5 square meters of high-quality pure copper connection wire, high temperature resistance, maximum support 25A large current through, with dustproof and waterproof function, easy installation.

Widely used：
Solar street lamp, solar insecticide lamp, solar garden lamp, solar landscape lamp, solar lawn lamp, solar traffic light, solar indicator, etc.

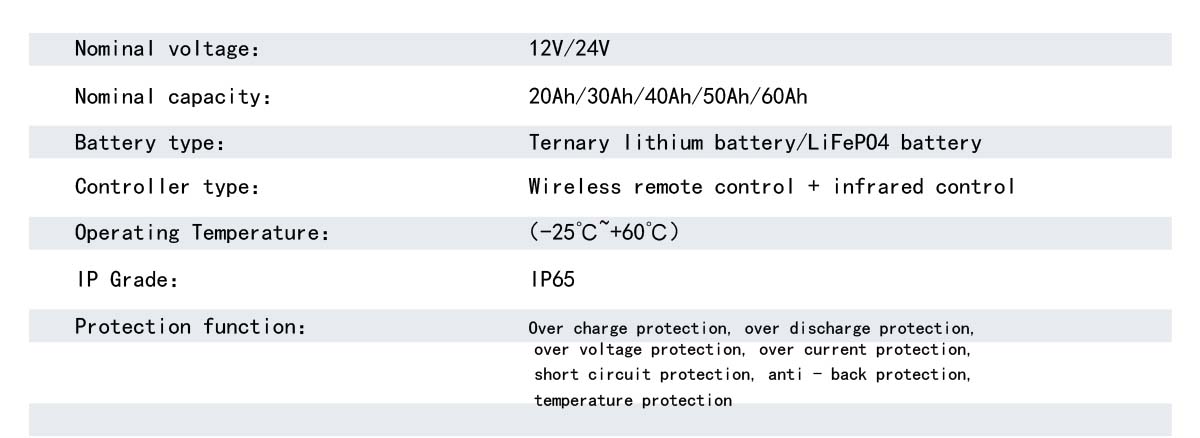

TECHNICAL PARAMETERS

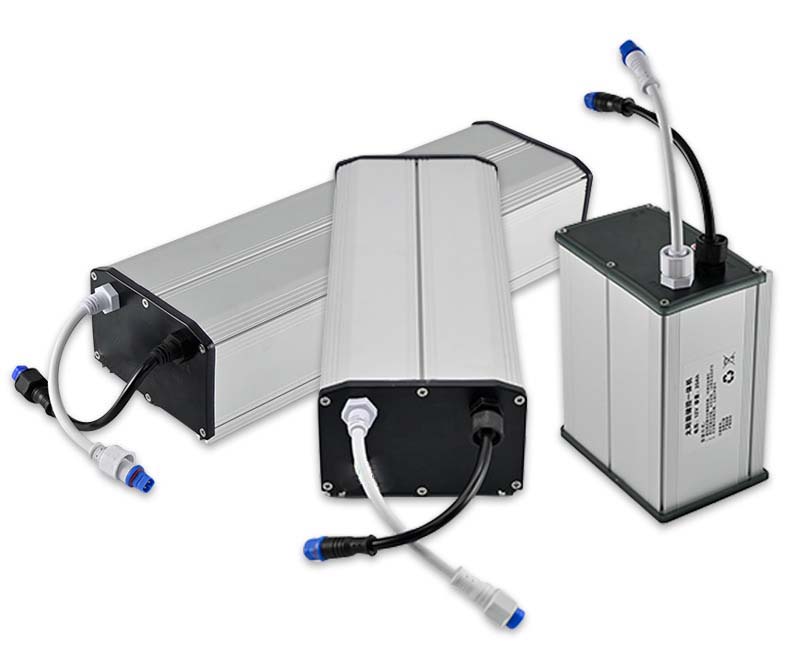

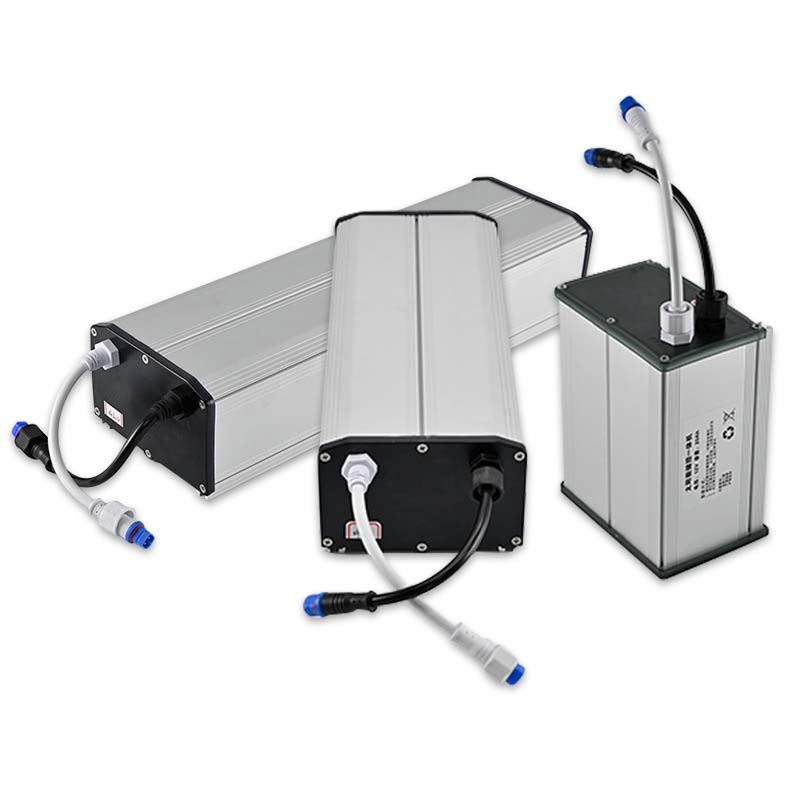

PRODUCT DISPLAY
